Flat Head Self Drilling Screw (SJ-3001)

Home > Products > Self Drilling Screws > Flat head (SJ-3001)

The flat head is also called countersunk head(or abbreviation as CSK head), this is probably one of the most common head types for fasteners.

But there are still differences under such division.

Sometimes people confuse the "bugle head(see SJ-30014 below)" with it.

A concave shape below the screw head is the most identifiable feature of the bugle head screw, they are usually used to fasten the plasterboard or gypsum material(hence, we call them "drywall screw" or "gypsum screw").

Under some of the flat head screws, you can find 4~6 ribs(or nibs) around it, they are commonly used on double panels (metal+PVC).

They are also knowns as "window screws" or "PVC screws".

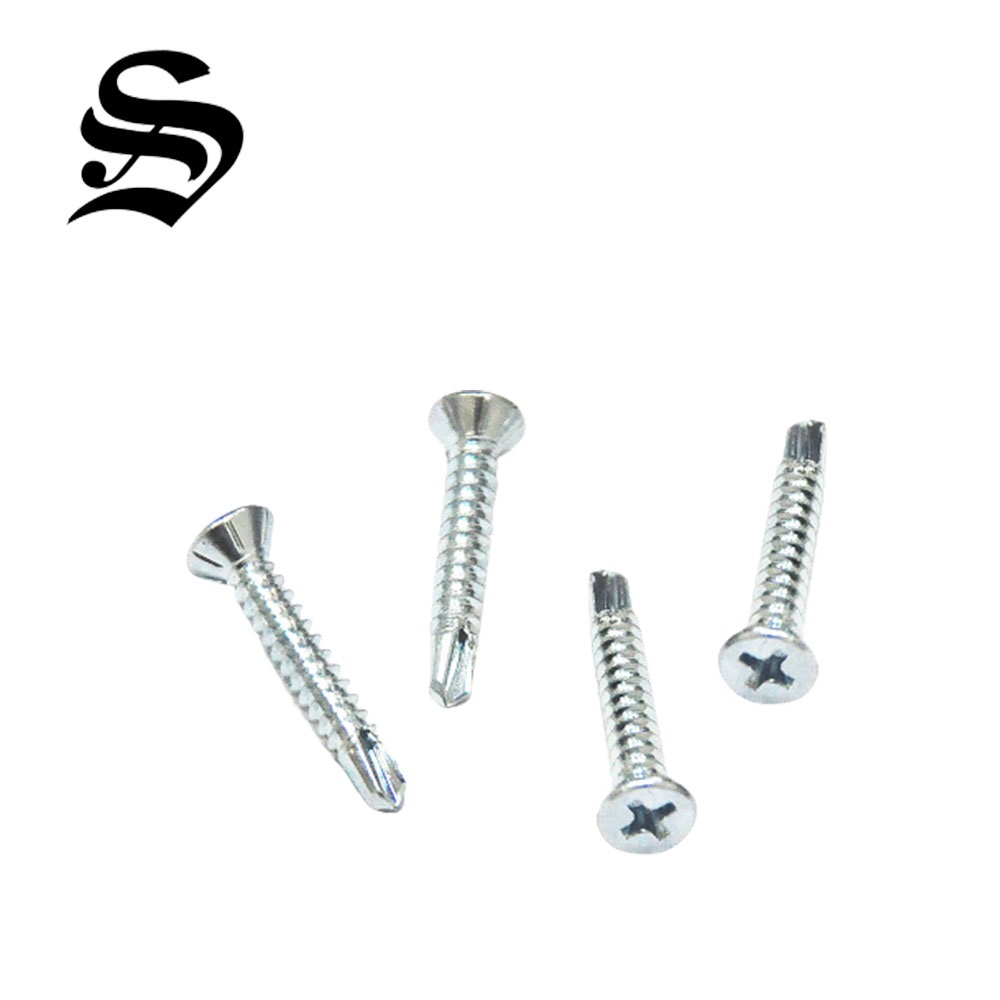

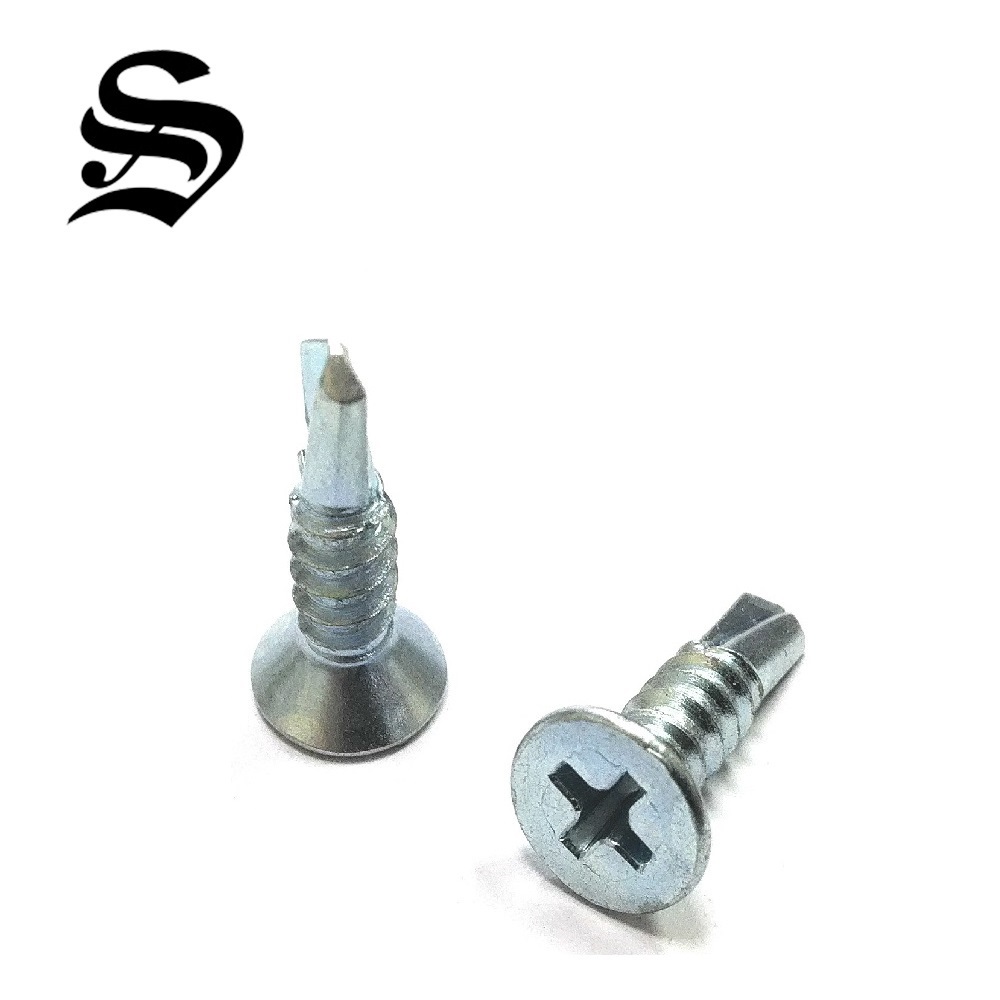

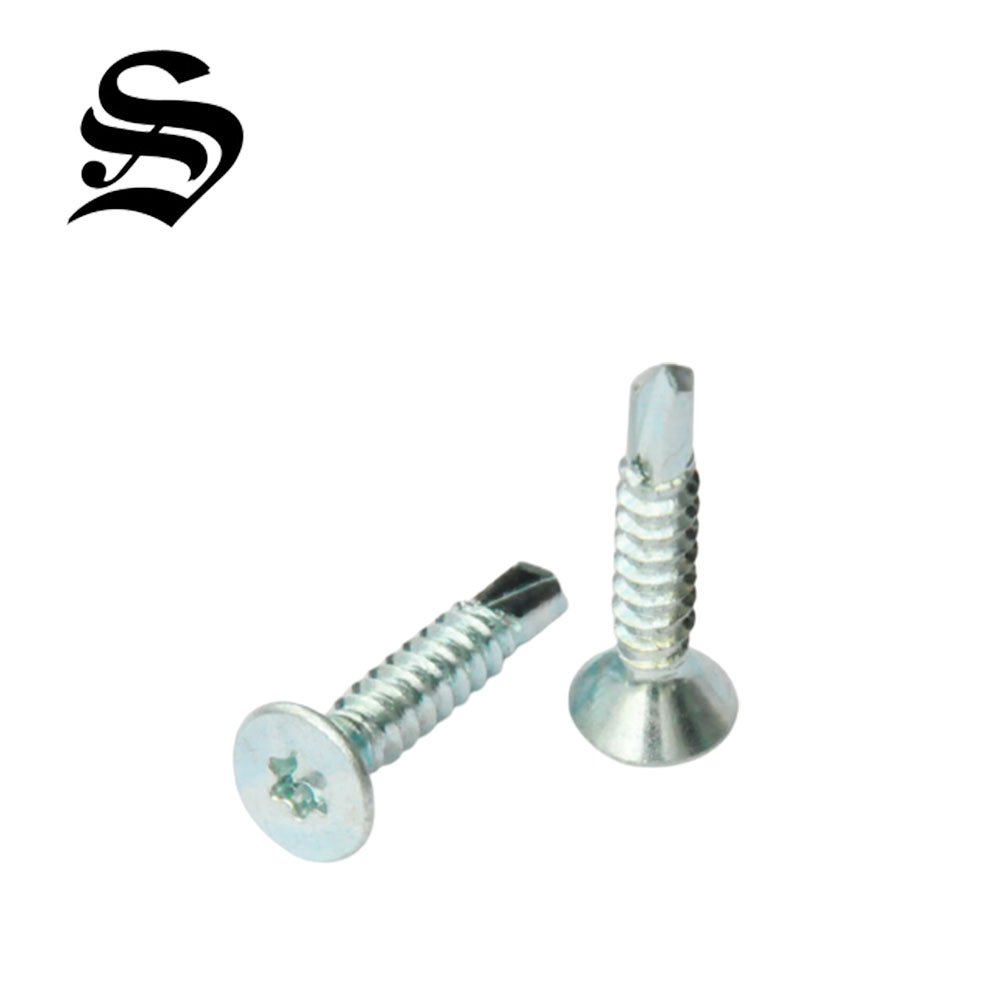

Flat Head (SJ-30011) Flat Head (SJ-30012)

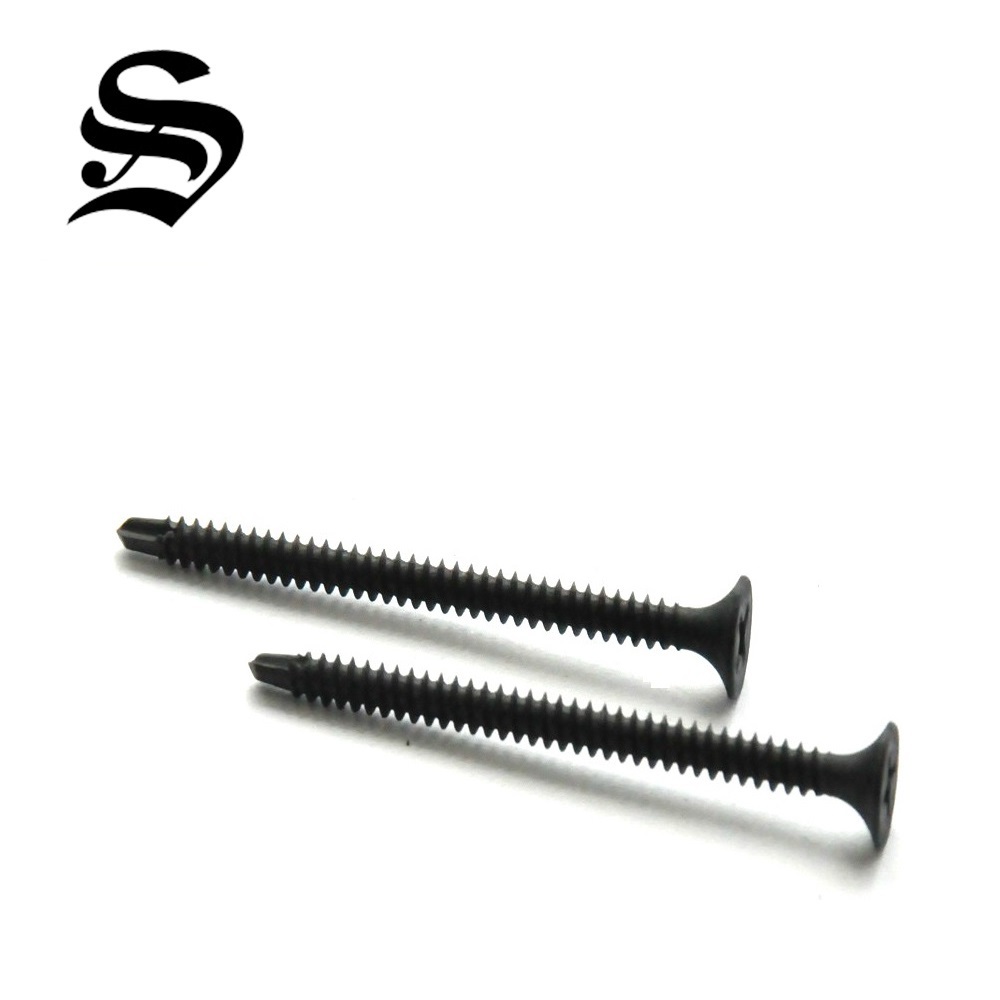

Flat Head With 6 Ribs (SJ-30013) Bugle head (SJ-30014)

Small Flat Head (SJ-30015)

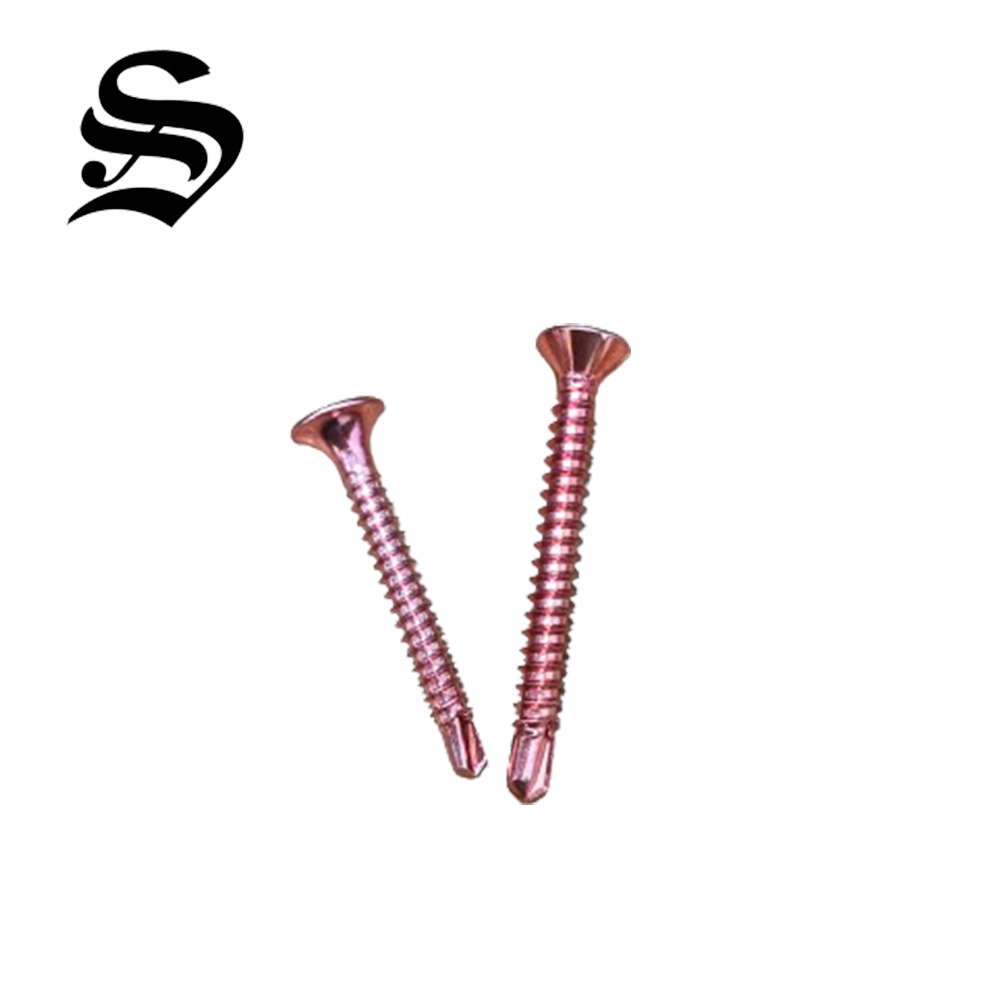

Colored Anodized Flat Head (SJ-30016)



Material Carbon steel/Stainless steel
Head Type Flat head/Countersunk head(CSK)/Double CSK head/Bugle head
Drive Torx, Phillips, Slotted, Pozi or as per the customer’s requirement
Size M3.0~M6.3
Variety Window screw/tek screw/PVC screw
Surface Treatment Steel:Zinc (White, Blue, Yellow, Black), Ruspert
Stainless steel:Passivated

CSK Head Self Drilling ScrewCSK Head Self Drilling Screw

CSK Head Self Drilling Screw
